Syntax highlighting in LaTeX with lstlisting

When adding code snippets to my LaTeX documents, I use lstlisting. It is a syntax highlighting environment that can easily be tweaked to match your own styling.

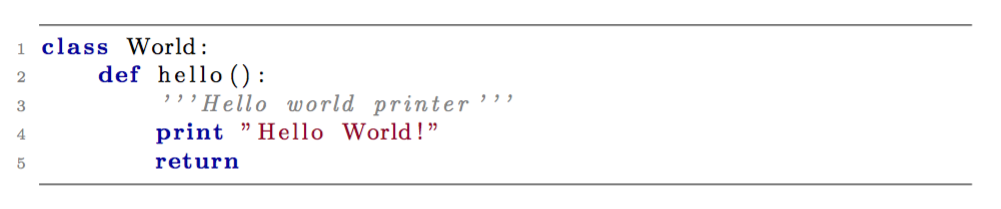

LaTex listlisting syntax highlighting example
Example of syntax highlighting with lstlisting and the style defined below.

To do this you need to use the package listings\usepackage{listings}.

Code snippets are added like this:

Some super cool code snippet...

Adding a code snippet from file is also possible:


You can changes the styling of the code fragments (making keywords bold, comments italic, changing colors, …) by specifying lstset:

\lstset{ %
  backgroundcolor=\color{white},   % choose the background color; you must add \usepackage{color} or \usepackage{xcolor}
  basicstyle=\footnotesize,        % the size of the fonts that are used for the code
  breakatwhitespace=false,         % sets if automatic breaks should only happen at whitespace
  breaklines=true,                 % sets automatic line breaking
  captionpos=b,                    % sets the caption-position to bottom
  commentstyle=\color{commentsColor}\textit,    % comment style
  deletekeywords={...},            % if you want to delete keywords from the given language
  escapeinside={\%*}{*)},          % if you want to add LaTeX within your code
  extendedchars=true,              % lets you use non-ASCII characters; for 8-bits encodings only, does not work with UTF-8
  frame=tb,	                   	   % adds a frame around the code
  keepspaces=true,                 % keeps spaces in text, useful for keeping indentation of code (possibly needs columns=flexible)
  keywordstyle=\color{keywordsColor}\bfseries,       % keyword style
  language=Python,                 % the language of the code (can be overrided per snippet)
  otherkeywords={*,...},           % if you want to add more keywords to the set
  numbers=left,                    % where to put the line-numbers; possible values are (none, left, right)
  numbersep=5pt,                   % how far the line-numbers are from the code
  numberstyle=\tiny\color{commentsColor}, % the style that is used for the line-numbers
  rulecolor=\color{black},         % if not set, the frame-color may be changed on line-breaks within not-black text (e.g. comments (green here))
  showspaces=false,                % show spaces everywhere adding particular underscores; it overrides 'showstringspaces'
  showstringspaces=false,          % underline spaces within strings only
  showtabs=false,                  % show tabs within strings adding particular underscores
  stepnumber=1,                    % the step between two line-numbers. If it's 1, each line will be numbered
  stringstyle=\color{stringColor}, % string literal style
  tabsize=2,	                   % sets default tabsize to 2 spaces
  title=\lstname,                  % show the filename of files included with \lstinputlisting; also try caption instead of title
  columns=fixed                    % Using fixed column width (for e.g. nice alignment)

When you use your own colors, you must naturally define them:


\definecolor{commentsColor}{rgb}{0.497495, 0.497587, 0.497464}
\definecolor{keywordsColor}{rgb}{0.000000, 0.000000, 0.635294}
\definecolor{stringColor}{rgb}{0.558215, 0.000000, 0.135316}

If needed you can also specify your own language syntax:

  keywords={typeof, new, true, false, catch, function, return, null, catch, switch, var, if, in, while, do, else, case, break},
  ndkeywords={class, export, boolean, throw, implements, import, this},

More info can be found in the LaTeX documentation: Source Code Listings.
